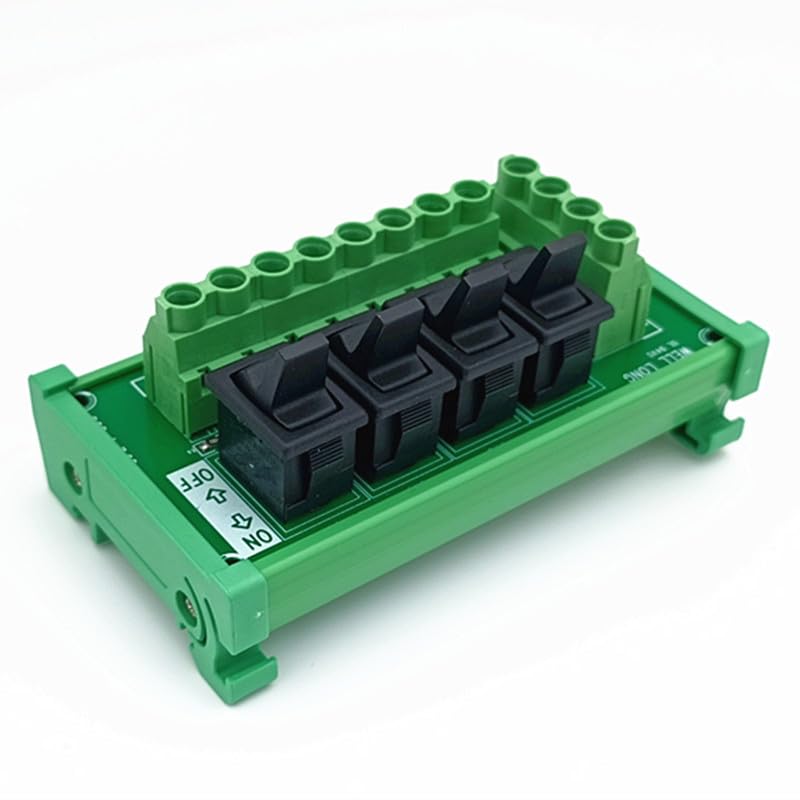

DIN Rail Mount 4 Channel Paddle Switch Power Distribution Strip Module.
Product details
| Management number | 239535988 | Release Date | 2026/07/14 | List Price | US$10.39 | Model Number | 239535988 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

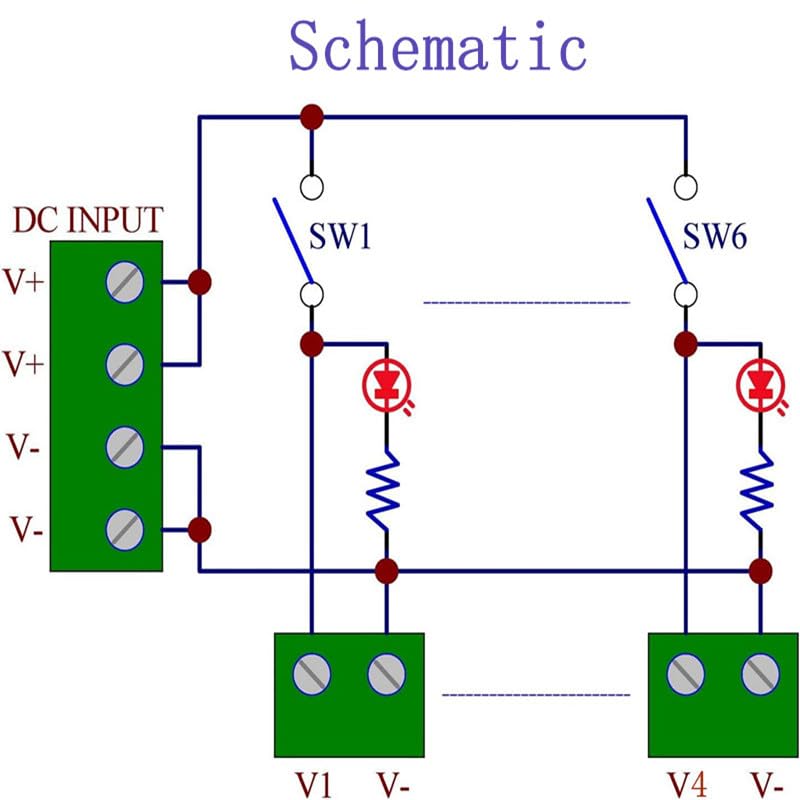

DIN Rail Mount 4 Channel Paddle Switch Power Distribution Strip Module Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 4 Channels output, each channel maximum output current 10 Amps. Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules. Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function. High quality fireproof nylon material DIN rail mount carrier , can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
- DIN Rail Mount 4 Channel Paddle Switch Power Distribution Strip Module Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 4 Channels output, each channel maximum output current 10 Amps.

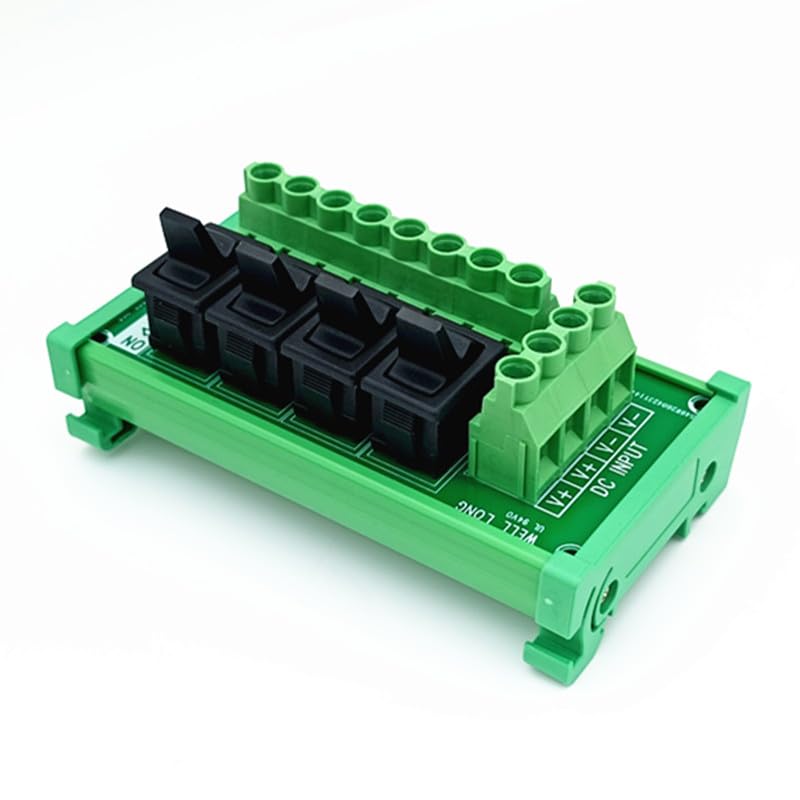

- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.

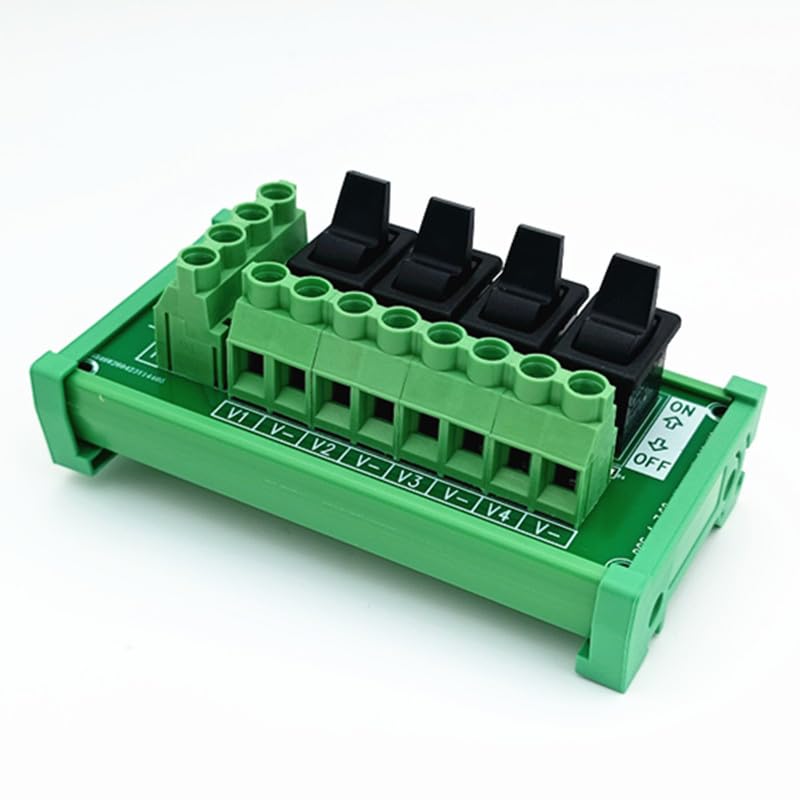

- Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

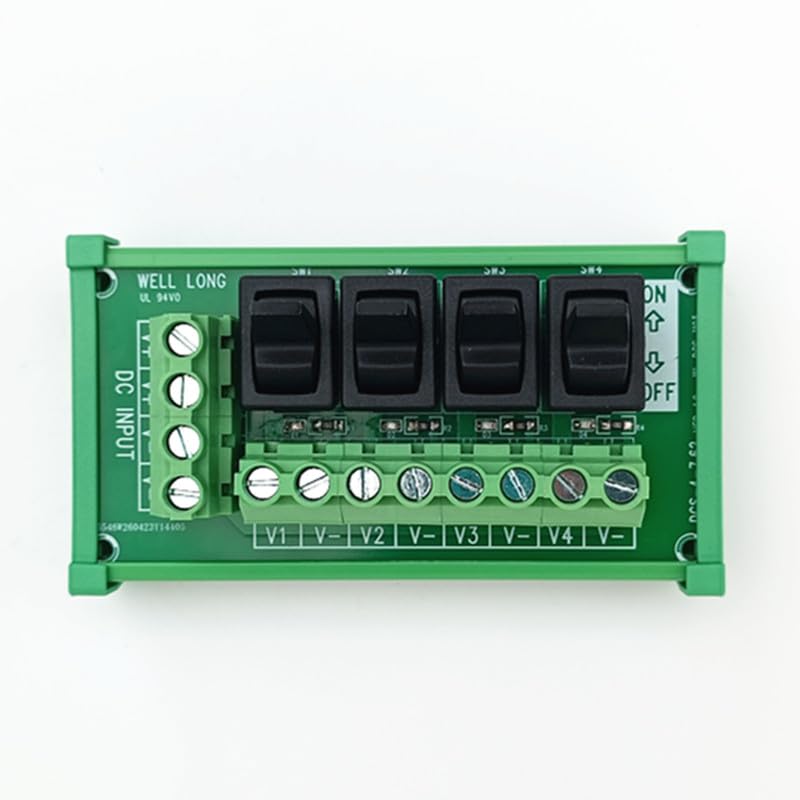

- Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.

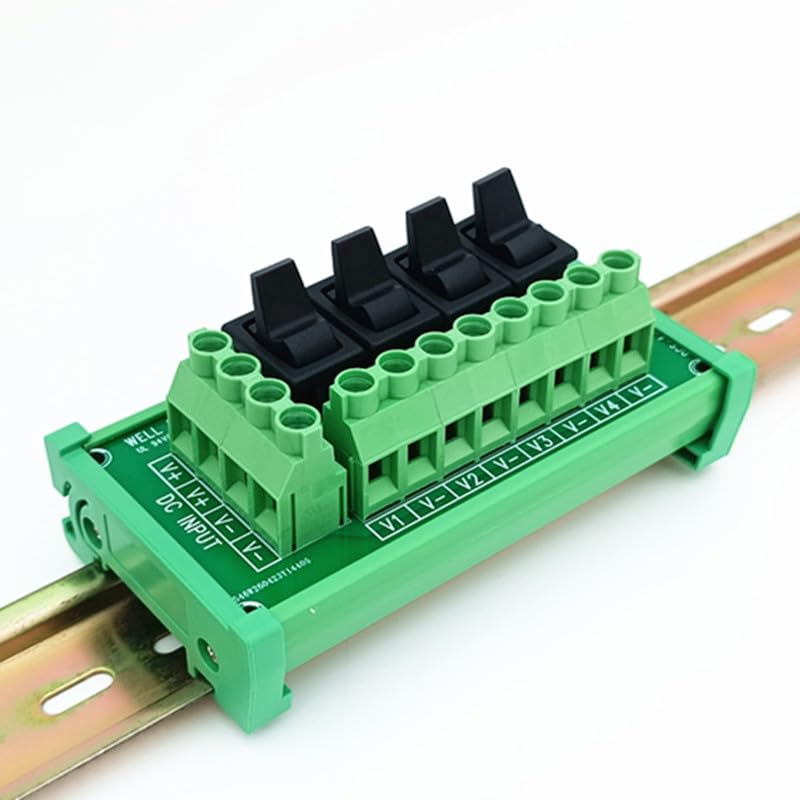

- High quality fireproof nylon material DIN rail mount carrier , can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
| ASIN | B0H4WDKB14 |
|---|---|
| Color | Green |
| Model | WL-DCS-1105T-A3 |
| Pitch | 0.1 Inches |
| Voltage | 50 Volts |
| Brand Name | SZ-WEEL LONG |
| Item Weight | 120 Grams |
| Part Number | WL-DCS-1105T-A3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 10 Amps |
| Number Of Poles | 4 |
| Specification Met | UL |
| Temperature Range | -20to50 Degrees Celsius |
| Number Of Contacts | 4 |
| Included Components | Terminal Block, Header Connector, Din Rail Mount |
| Item Dimensions W x H | 2.28"W x 1.7"H |
| Upper Temperature Rating | 50 Degrees Celsius |
